Z100 servo motor encoder axial endplay 0.02 max through hole shaft encoder without bearing
About Our Factory
- Own brand of "HENGXIANG" encoder
- Has ISO9001:2000 Quality Management System Certificate and CE Certification
- Invention patents five and utility model patents five
- Passed Shanghai New and High-tech Achievements Transformation Project.
- Our target: Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win.
- Located in Shanghai city
- 20-30 experienced workers
Factory Encoder Production Capability
5000 pieces per month
-------- Production Line Capacity
50000 pieces per year
--------Actual Units Produced (Previous Year)
Shipment
Goods can shipped via TNT, FedEx, UPS, DHL, EMS, etc.
You could select the express according to your requirements if freight collector
If you do not have any courier account, we will check and find a cheapest and safety express for you.
Our factory has 30% discount with most courier company, so price could be as cheap as possible.
Reference encoder model number of Z100
Z100-J12C5000/10B46
Z100-C12E5000/16B50
Z100-J12C10000/8B52
Z100-C12E10000/10B55
Z100-J12C10000/16B60
Z100-J12E2500/8B51
Z100-C12C2500/10B52
Z100-J12C2500/16B53
Z100-C12E5000/10B54
Z100-J12C5000/16B55
Z100-C12E10000/10B61
Z100-J12C10000/16B63

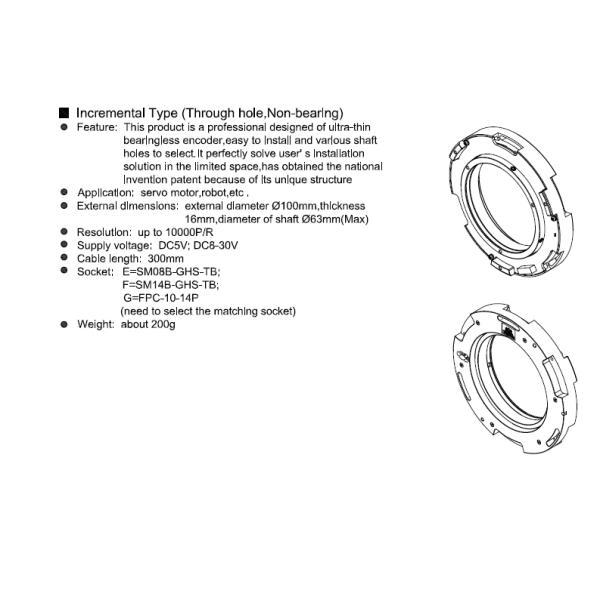

Product Description
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | bearingless encoder |
| External diameter | 100mm |
| Thickness | 16mm |
| Hollow shaft type | through hole |
| Hollow shaft diameter | 40mm;63mm;65mm |
| Resolution | 2500/8；2500/10;2500/16;5000/10;5000/16; |
| 10000/8;10000/10;10000/16 |
| Output phase | A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- |
| Supply voltage | DC5V ; DC8--30V |
| Output mode | Radial cable |
| Radial socket |
| line drive (26LS31) TTL |
| line drive(DC8-30V) HTL |
| Cable length | 300mm |
| rise/fall time | less than 1 us(cable length:2 meters) |
| Consumption current | 120mA MAX |
| Top response frequency | 300KHZ |
| GND | not connect to encoder |
| Slew speed | 5000RPM |
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+90° |
| Environmental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Material | aluminum alloy |
| Certification | CE |
| package | Carton box |
| Net weight | About 180g (with package) |
Matters needing attention
1. Must choose the power supply voltage: DC5V or DC8-30V
2. Must choose leaf spring plate model number if you select hollow shaft encoder
3. Please advise the motor speed (RPM) that you actually use
4. If you have any other requirements, please provide detail parameters
Product Tags:
|
|
Large Hole Bearingless Thin Motor Driver Encoder For Space Saver Z100-J12C2500/16B40 Images
|
